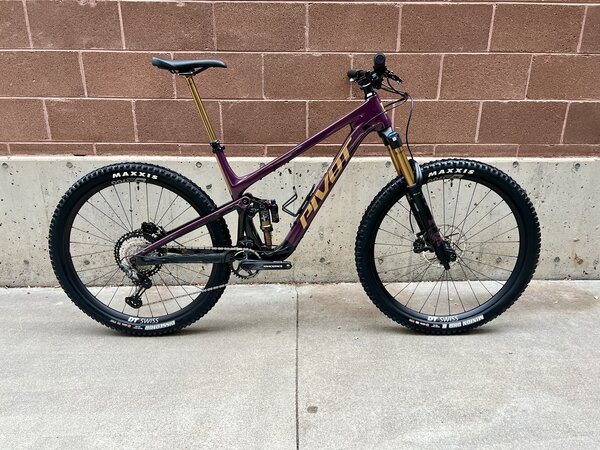

Pivot Cycles USED Pivot Trailcat LT Pro XT/XTR - Alloy Wheels - 2025
Details
Striking the perfect balance of trail-taming composure and lively responsiveness, the Trailcat LT redefines what a trail bike can be, challenging expectations and setting a new benchmark for the trail category. The 135mm of masterfully tuned dw-link suspension maximizes traction and efficiency on every climb while maintaining a plush, bottomless feel when charging through rocky, root strewn descents. Nimble, planted and always in control, the LT encourages you to push harder and ride every trail like it was built just for you.
The all-new Trailcat LT isn’t a bike that fits neatly into the typical trail category—it’s a ride for those who crave more. When 120mm of travel just isn’t enough but you don’t want to give up that magical pedaling performance of a short travel trail bike, then the Trailcat LT is your answer! It combines the nimbleness of a short-travel trail bike with the aggressive spirit of a bike that thrives on everything from flowy singletrack to steep, technical descents. When the trail turns rowdy, the LT punches above its weight class and thrives in the excitement.
Every detail of the Trailcat LT is engineered to amplify your trail experience and keep you charging hard. Pivot’s Toolshed™ downtube storage system provides a sleek, integrated solution to carry your essentials without compromising your ride. Its precision-crafted door stays silent over the roughest terrain, while the rugged, secure bags ensure your tools and gear are snug and ready when you need them, eliminating the need for bulky packs.
Product Details:
- Ultra-Light Hollow Core Carbon Frame
- Toolshed™ In-Frame Storage
- New Dual Cable Port Design
- Large Water Bottle Clearance on all sizes
- Fits riders between 4'10” and 6'5”+ with X-Small to X-Large size offerings
- Flip Chip for on-trail geometry customization
- MX Wheel Compatible
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Hassle free full internal routing with Pivot cable port system
- UDH Derailleur Hanger
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Geometry Position | Low / High | Low / High | Low / High | Low / High | Low / High |
| Seat Tube Length (C-T) (cm) | 34.3 | 36.8 | 39.4 | 43.2 | 47 |
| Top Tube Length (cm) | 57 / 56.9 | 59.8 / 59.6 | 63.1 / 62.9 | 64.8 / 64.6 | 66.2 / 66 |
| Head Tube Length (cm) | 8.5 | 9.5 | 10.7 | 11.2 | 12.5 |
| Head Tube Angle | 65.3° / 65.6° | 65.3° / 65.6° | 65.3° / 65.6° | 65.3° / 65.6° | 65.3° / 65.6° |
| Seat Tube Angle | 75.6° / 76° | 75.6° / 76° | 75.6° / 76° | 75.6° / 76° | 76° / 76.4° |
| Chainstay Length (cm) | 43.1 / 43 | 43.1 / 43 | 43.1 / 43 | 43.3 / 43.1 | 43.5 / 43.3 |
| Bottom Bracket Height (cm) | 34 / 34.6 | 34 / 34.6 | 34 / 34.6 | 34 / 34.6 | 34 / 34.6 |
| Bottom Bracket Drop (cm) | 3.4 / 2.8 | 3.4 / 2.8 | 3.4 / 2.8 | 3.4 / 2.8 | 3.4 / 2.8 |
| Standover (cm) | 65.9 / 66.2 | 68 / 68.3 | 68.3 / 68.7 | 69.6 / 70.1 | 71.2 / 71.6 |
| Wheelbase (cm) | 114.8 / 114.7 | 117.7 / 117.6 | 121.2 / 121.1 | 123.1 / 123 | 125.7 / 125.6 |
| Stack (cm) | 60.9 / 60.5 | 61.8 / 61.4 | 62.9 / 62.5 | 63.4 / 63 | 64.6 / 64.2 |
| Reach (cm) | 40.5 / 41 | 43 / 43.5 | 46 / 46.5 | 47.5 / 48 | 49.5 / 50 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 1,50 – 1,63 m | 4'11" – 5'4" |
| Small | 1,63 – 1,75 m | 5'4" – 5'9" |
| Medium | 1,73 – 1,80 m | 5'8" – 5'11" |
| Large | 1,78 – 1,88 m | 5'10" – 6'2" |
| X-Large | 1,88 m + | 6'1" + |
Specs
| Frame | Trailcat LT |
|---|---|
| Fork | Fox Factory 36 GripX2 |
| Rear Shock | Fox Factory Float X |
| Wheels | DT Swiss XM 1700 |
| Hubs | DT Swiss 350 |
| Tires | [front] Maxxis Minion DHRII, WT, TR, 3C, EXO+, MAXXTERRA, [rear] Maxxis Dissector, WT, TR, 3C, EXO+, MAXXTERRA |
| Crankset | Race Face Æffect R |
| Chainrings | 32t |
| Shifters | Shimano XT M8100 ISPEC |
| Rear Derailleur | Shimano XTR M9100 SGS (12-speed) |
| Cassette/Freewheel | Shimano XT M8100 |
| Brakes | Shimano XT M8120 4-piston |
| Handlebars | Phoenix Team Low Rise Carbon |
| Stem | Phoenix Team Enduro/Trail |
| Seatpost | Fox Transfer Factory |
| Saddle | Phoenix WTB Volt Pro |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| X-Large | DEMOTRAILCAT210000091279 | 210000091279 |
