Orbea Occam SL H10

Orbea Occam SL H10

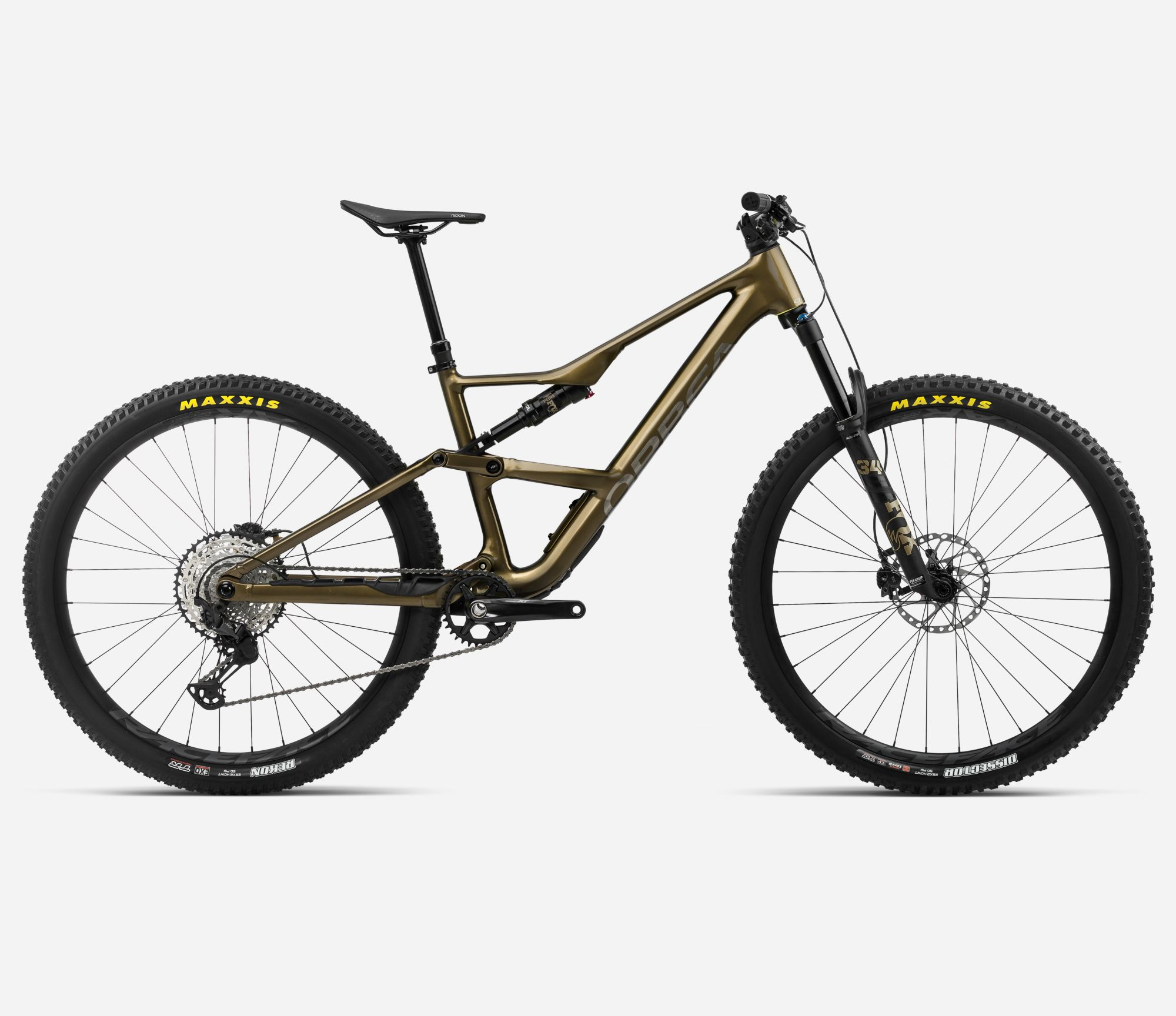

  • Color: Metallic Olive Green-Titanium Black
  • Color: Slate Blue-Orange Cloud
  • Color: Spicy Lime-Corn Yellow
$4,399.00

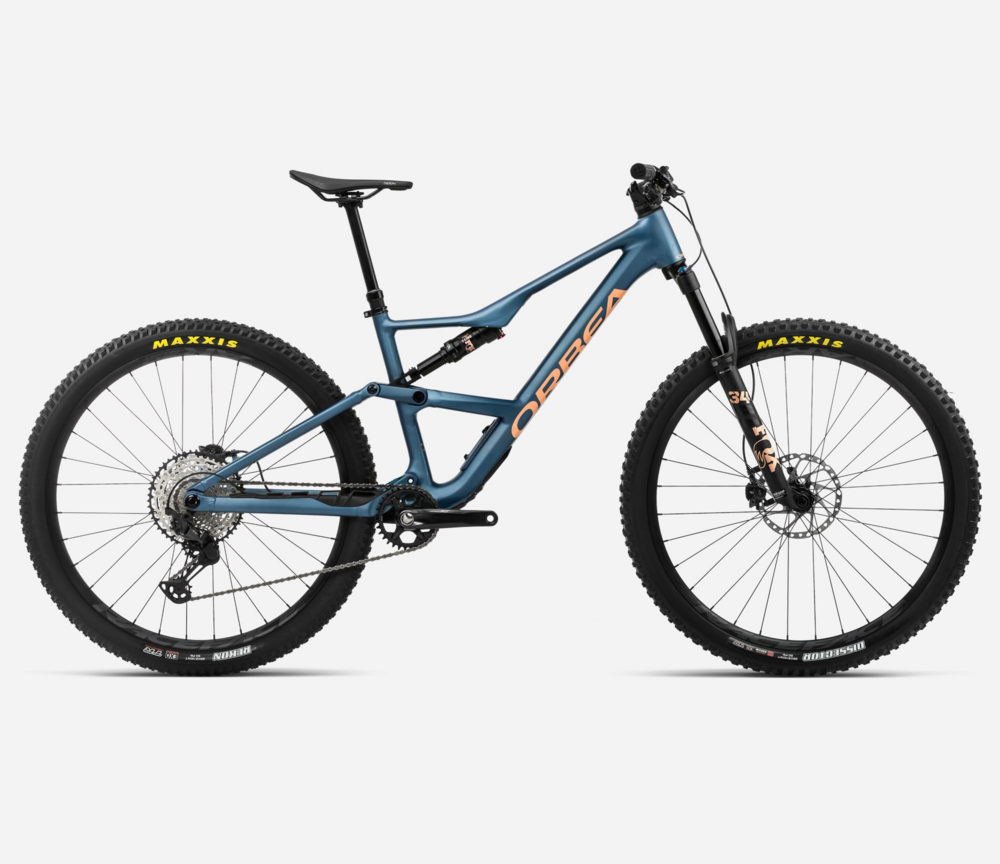

Color: Slate Blue-Orange Cloud
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

THE ESSENCE OF ADVENTURE

Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam SL opens up big mountain adventures and long distances. Light and efficient, the fast trail geometry and efficient suspension bring control and flow to your adventures.

WHY CHOOSE A FAST AND LIGHT TRAIL BIKE?
Why do we choose a Trail bike over a purebred XC machine? Occam SL thinks that the answer is fun. That perfect mix of climbing ability and descending prowess. Light, controlled and confidence-inspiring, Occam SL brings flow to every trail.

SIMPLE, MINIMAL AND PACKED WITH FEATURES
Great things don't have to be complicated. The patented I-Line system means the remote lockout is sleek and easy to use. Cleverly integrated tool storage and the bigger and better LOCKR frame storage mean everything you need is right at hand.

Sizes:
SmallMediumLargeX-Large
SEAT TUBE (C-T)405 415430460
TOP TUBE (EFF)570 596622649
HEAD TUBE95 100110120
CHAINSTAY440 440440440
BB HEIGHT341 341341341
BB DROP37 373737
WHEELBASE1191 121812451276
HEAD ANGLE65.5 65.565.565.5
SEAT ANGLE78 787878
REACH440 465490515
STACK611 615624633
FORK LENGTH554 554554554
RAKE44 444444
SEATPOST INSERTION MIN410 420435460
Sizes:
SizeHeight- INHeight- CM
Small59.1"-66.9" 150-170
Medium63.0"-70.9" 160-180
Large66.9"-74.8" 170-190
X-Large70.9"-78.7" 180-200

Specs

Pedals Sold Separately
Fork Fox 34 Float Performance 140 Remote Push-lock QR15x110
Stem OC Mountain Control MC20, 0º
Chain Shimano M6100
Frame Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Brakes Shimano XT M8100 Hydraulic Disc
Saddle Fizik Terra Ridon X5 145mm
Wheels Race Face AR 30c Tubeless Ready
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano XT M8120 32t
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Shifters Shimano XT M8100 I-Spec EV
Handlebars OC Mountain Control MC30, Rise20, Width 800
Rear Shock Fox Float Performance Remote Push-lock Evol custom tune 210x50mm
Tape/Grips OC Lock On
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Slate Blue-Orange Cloud / Medium / 29-inch 8434446643217 R25805P3 210000082529
Slate Blue-Orange Cloud / Large / 29-inch 8434446643248 R25807P3 210000082532
