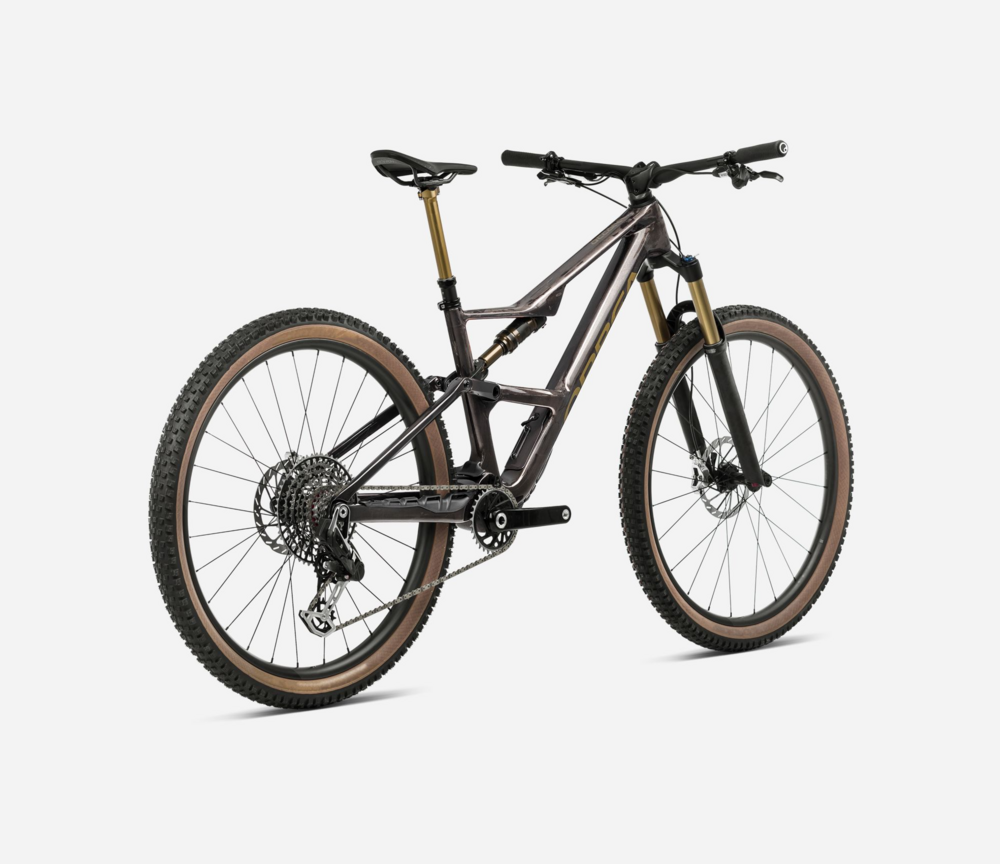

Orbea Occam LT M30

Orbea Occam LT M30
  • Color: Cosmic Carbon View - Metallic Olive Green
  • Color: Green Gold - Corn Yellow
$4,999.00
Wheel Size:
29-inch
Please select options Unavailable

Details

MAKE THE MOUNTAIN YOUR PLAYGROUND

Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam LT is the voice in your head telling you that you can push harder, stay off the brakes, and take it that bit further.

Adventures can take you anywhere, and Occam LT is ready. Seriously light and tough with aggressive geometry, this is a bike for pushing your limits and enjoying yourself. Even on the rowdiest trails, the progressive suspension is smooth and supportive and works perfectly with coil shocks. Our improved Steep and Deep design is deeper than ever, with full insertion for a 230mm dropper on all frames.

Geometry

Sizes:
FRAME SIZES-HIGHS-LOWM-HIGHM-LOWL-HIGHL-LOWXL-HIGHXL-LOW
1 - SEAT TUBE (C-T) 405 405 415 415 430 430 460 460
2 - TOP TUBE (EFF) 571 572 597 598 624 625 651 653
3 - HEAD TUBE 95 95 100 100 110 110 120 120
4 - CHAINSTAY 440 440 440 440 440 440 440 440
5 - BB HEIGHT 350 342 350 342 350 342 350 342
6 - BB DROP 28 36 28 36 28 36 28 36
7 - WHEELBASE 1199 1200 1226 1227 1255 1257 1285 1286
8 - HEAD ANGLE 64.5 64 64.5 64 64.5 64 64.5 64
9 - SEAT ANGLE 77.5 77 77.5 77 77.5 77 77.5 77
11 - REACH 435 430 460 455 485 480 510 505
12 - STACK 616 621 621 625 630 635 639 644
13 - FORK LENGTH 575 575 575 575 575 575 575 575
14 - RAKE 44 44 44 44 44 44 44 44
15 - SEATPOST INSERTION MIN 410 410 420 420 435 435 460 460
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
SMALL150 - 165 59.1" - 65.0"
MEDIUM160 - 175 63.0" - 68.9"
LARGE170 - 185 66.9" - 72.8"
X-LARGE180 - 195 70.9" - 78.0"

Specs

Fork Fox 36 Float Performance 160 Grip 3-Position QR15x110
Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Tires Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR
Brakes Shimano M6120 Hydraulic Disc
Saddle ERGON SM Enduro
Wheels Race Face AR 30c Tubeless Ready
Headset Alloy 1-1/2", Black Oxidated Bearing
Crankset Race Face Aeffect 32t
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Rims Race Face AR 30c Tubeless Ready
Stem OC Mountain Control MC20, 0º
Chain Shimano M6100
Handlebars OC Mountain Control MC30, Rise20, Width 800
Rear Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Cosmic Carbon View - Metallic Olive Green / Large / 29-inch 8434446520068 R26307P5 210000082557
Green Gold - Corn Yellow / Medium / 29-inch 8434446520013 R26305P4 210000082554
Green Gold - Corn Yellow / Large / 29-inch 8434446520051 R26307P4 210000082556
